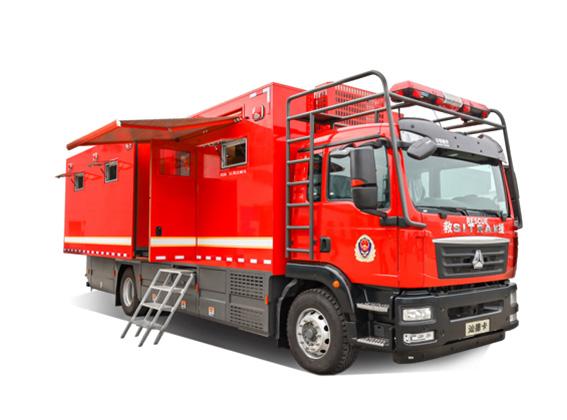

GAOLI GWEMA GLW5160TXFSY05 Emergency Support Fire Truck

This vehicle is refitted on SINOTRUK Sitrak ZZ5186XXYN561GF1 heavy chassis, equipped with bilateral electric expandable cabins to expand interior space. The interior integrates command meeting room, kitchen counter, separated bathroom and multiple rest rooms, accommodating 5 staff for long-term field duty. Standard equipment includes 600L fresh water tank, full off-grid power supply, 12kW fuel heating system, vehicle refrigerator, TV and constant-temperature shower. It features rain-sensing auto window closing and intelligent central control panel. With official special vehicle certificate, it integrates mobile command, catering and accommodation functions, widely used in fire rescue, flood control and pre-duty for large events. Customization and complete after-sales service are available.

Order(MOQ) :
1 unit
Payment :
Telegraphic Transfer
Product Origin :
Nanjing City, Jiangsu Province
Shipping Port :
Nanjing City, Jiangsu Province
Lead Time :
3 to 6 months

Inquiry Now

1. Chassis & External Cabin Structure

This emergency support vehicle is refitted on SINOTRUK Sitrak ZZ5186XXYN561GF1 heavy-duty chassis with a 5600mm wheelbase, equipped with EBS braking system and leaf spring suspension, delivering stable performance on highways, mountain and rural roads. It adopts 295/80R22.5 heavy-duty tires and integrated Q355B steel body protection for strong impact resistance.

The body is finished in standard fire red with grey lower protection enclosures, overall length 7700mm, fitted with bilateral electric sliding expandable compartments. The compartments retract fully during transit for smooth road travel and extend electrically on-site to enlarge interior space. All expansion slide rails and control rods are anti-corrosion and temperature-resistant, with fully sealed structure against rain, snow and wind. All wiring is pre-buried inside wall panels with wear-resistant insulation layers. The roof is equipped with red rescue warning strobes and ventilation fans, matched with aluminum climbing ladders and electric retractable steps for safe access.

The integrated water tank system includes 600L fresh water tank, 200L grey water tank and 130L black water tank with anti-freezing insulation, supporting multi-day off-grid water supply for field operations.

2. Zoned Multi-functional Interior Layout

The interior is divided into command meeting zone, operation counter, independent bathroom, shower room and multi-rest areas, decorated with RV-grade eco-friendly wood panels and anti-slip wood flooring, capable of accommodating 5 rescuers for long-term field duty.
1. Foldable Command Meeting Zone: Fitted with 1700×800×750 foldable conference table, 6 soft seats, electronic whiteboard, 24-inch vehicle TV, printer and water dispenser, enabling on-site combat briefing and remote video dispatching. The expandable cabin doubles office space for multi-person collaboration.
2. Multifunctional Kitchen Counter: Integrated compressor refrigerator, induction cooker and water purifier with ample storage cabinets for food refrigeration and simple meal preparation.
3. Separated Bathroom & Shower Room: Independent enclosed restroom and shower cubicle with constant temperature shower head (dual outlet mode). Complete sewage pipeline connects to grey/black water tanks with exhaust fans to eliminate moisture and odor.
4. Multi-rest Zones: Side rest areas with single beds, wardrobes and charging ports for shift staff; exclusive superior master bedroom with 2000×1050 wide bed, private partition and storage closet for command personnel. Modular beds can be stored to expand activity space, supporting 5 people to rest simultaneously.
3. Off-grid Water, Power & Electrical System

Equipped with a 12kW fuel heating unit to supply full-vehicle heating and domestic hot water, stable operation in frigid wild environments. Matched with high-power on-board generator and integrated intelligent control panel, centrally managing lighting, air conditioning, water circuits and expansion mechanisms with full visual display.

Standard configurations include ambient light strips, top fresh air system, parking heating & cooling air conditioner, rain-sensing automatic window closing function, refrigerator, induction cooker, water purifier and 24-inch vehicle TV, realizing fully self-sufficient operation without external water or mains power.

4. Core Product Advantages
1. All-in-one Multi-scene Support: Integrates mobile frontline command, on-site office, multi-person accommodation and independent kitchen & bathroom, solving rest and logistics difficulties during long-duration fire fighting, flood control and disaster rescue missions.
2. Flexible Electric Expandable Cabin: Compact size for daily transit, enlarged interior space after extension, balancing mobility and living comfort.
3. Complete Off-grid Self-support System: Large-capacity insulated water tanks, fuel heating and on-board generator allow independent multi-day operation in remote wild areas without municipal supporting facilities.
4. Formal Special Vehicle Announcement: Official special fire truck model GLW5160TXFSY05 with complete legal documents for nationwide registration. Factory provides bulk order discounts, full operation training and long-term original spare parts supply.
5. Applicable Scenarios

Fire rescue brigades, emergency management bureaus for flood control & forest fire duty, full-time fire teams of mines and chemical parks, pre-positioned support for large-scale events.
