Fire Fighting Series

  This vehicle is built on German MAN TGM18.320 heavy-duty chassis, with dimensions 8270×2520×3480mm and total loaded weight of 16700kg. The compartment adopts skeleton-free integrated aluminum alloy forming with excellent rust resistance, fitted with 8 waterproof rolling shutter equipment cabins and external liquid level displays. Equipped with imported Godiva automatic compressed air foam system, 60L/s fire pump and 48L/s roof fire monitor, it carries 4200kg water, 300kg Class A foam and 600kg Class B foam, with infinitely adjustable mixing ratio of 0.1%~10% for water-saving fire suppression and low secondary damage. Standard 50kN traction winch, 5kW generator and 8m lifting LED lighting tower are equipped, with one-button intelligent control. It integrates fire fighting, wreck clearance and night rescue lighting, ideal for urban fire stations, chemical parks and commercial complexes as main fire fighting vehicles.

Built on BJ1030EVAA73 double-row all-electric chassis, this vehicle carries 2–5 crew members. Compact size with turning radius ≤6m and cruising range over 190km; full charge takes only 1 hour, featuring zero emission and low noise. The superstructure adopts magnesium-aluminum alloy body, equipped with QXW12/30BD-C high-pressure water mist fire suppression system with 15m shooting distance and 500L stainless steel water tank. Full set of standard fire equipment and warning lights are included, with optional teaching touch screen, hydraulic rescue cutter and lifting light. It holds official vehicle certificate for legal registration, ideal for daily patrol and initial fire fighting in parks, factories, communities and scenic spots. The power battery enjoys a 6-year / 300,000 km warranty.

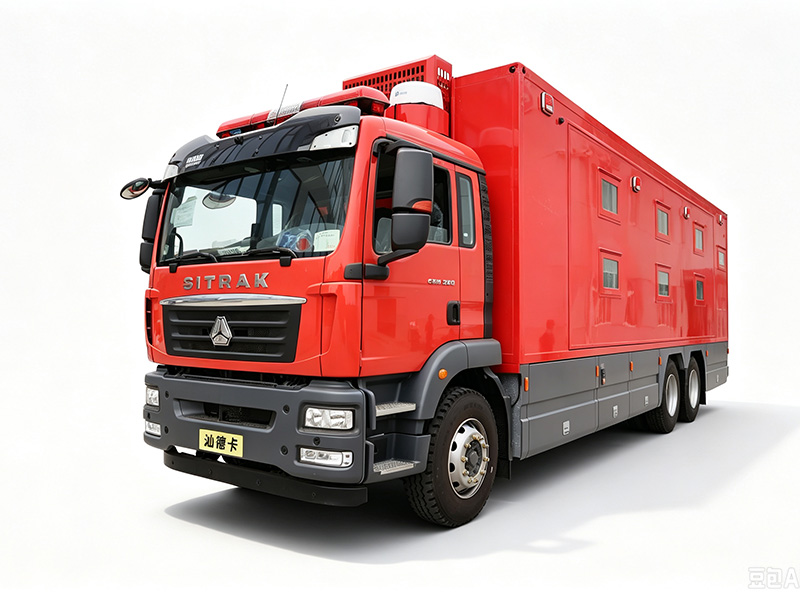

  This vehicle is refitted on SINOTRUK Sitrak ZZ5186XXYN561GF1 heavy chassis, equipped with bilateral electric expandable cabins to expand interior space. The interior integrates command meeting room, kitchen counter, separated bathroom and multiple rest rooms, accommodating 5 staff for long-term field duty. Standard equipment includes 600L fresh water tank, full off-grid power supply, 12kW fuel heating system, vehicle refrigerator, TV and constant-temperature shower. It features rain-sensing auto window closing and intelligent central control panel. With official special vehicle certificate, it integrates mobile command, catering and accommodation functions, widely used in fire rescue, flood control and pre-duty for large events. Customization and complete after-sales service are available.

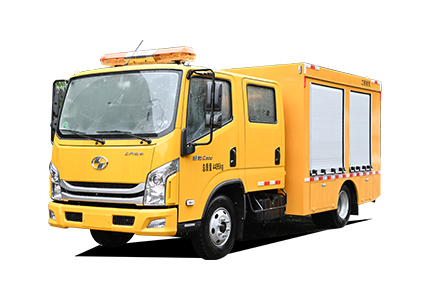

Model 1000Q-4.5 Yuejin National VI blue-plate rescue truck with double-row cab for 6 passengers, powered by an 88kW Weichai engine. It is equipped with two 50kW diesel generators and two 18.5kW light pumps, with total drainage capacity of 1000m³/h. The integrated compartment holds equipment and centralized electric control system. A foldable rear crane with 2000kg max lifting capacity is optional, widely used in flood control, tunnel and underground garage waterlogging emergency rescue.
