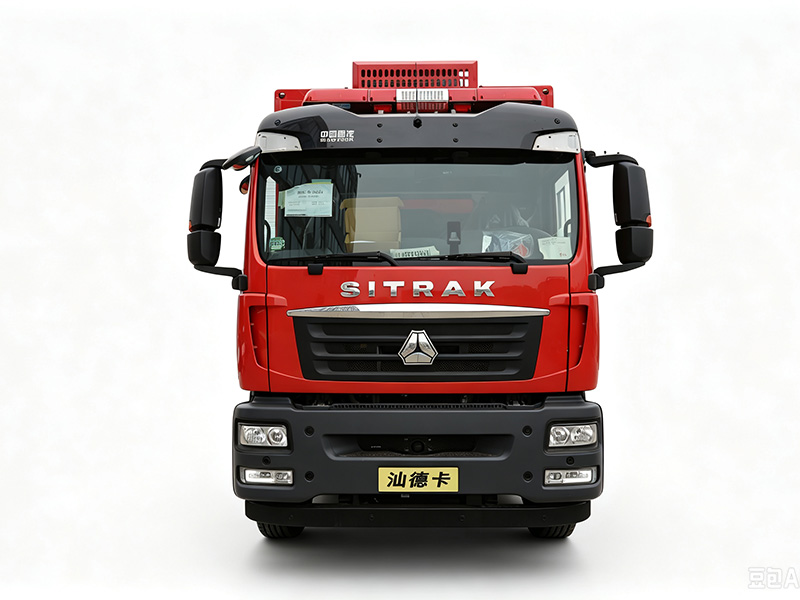

Gaoli 16‑Person Hydraulic Slide‑out Emergency Rescue Bivouac Support Truck

Built on heavy‑duty ZZ5256XXYN504GF1 6×4 chassis, this 16‑person emergency bivouac support truck serves as a self‑contained mobile camp for fire rescue, disaster relief, field emergency missions and large‑scale on‑site assignments.

It adopts hydraulic slide‑out cabin with 1150 mm travel to expand inner living space rapidly. Equipped with fold‑out bunk beds sized 1900×700 mm, the vehicle accommodates up to 16 field crew members. The integrated water system includes 500L clean‑water, 200L grey‑water and 200L black‑water 304 stainless‑steel tanks for shower and sanitary use.

On‑board 8 kW gasoline generator supplies independent power, matched with air‑conditioner and diesel water heater for heating & cooling in extreme hot‑cold conditions. Hydraulic outriggers provide stable leveling on uneven ground. High‑volume ventilation fans guarantee good indoor air circulation.

Arriving at site, crews can deploy living quarters in short order without setting up numerous tents. This all‑in‑one mobile shelter solves difficulties of field lodging, water supply and power shortage, improving sustained working capacity of rescue teams during long‑duration emergency operations.
