Compression Refuse Collector

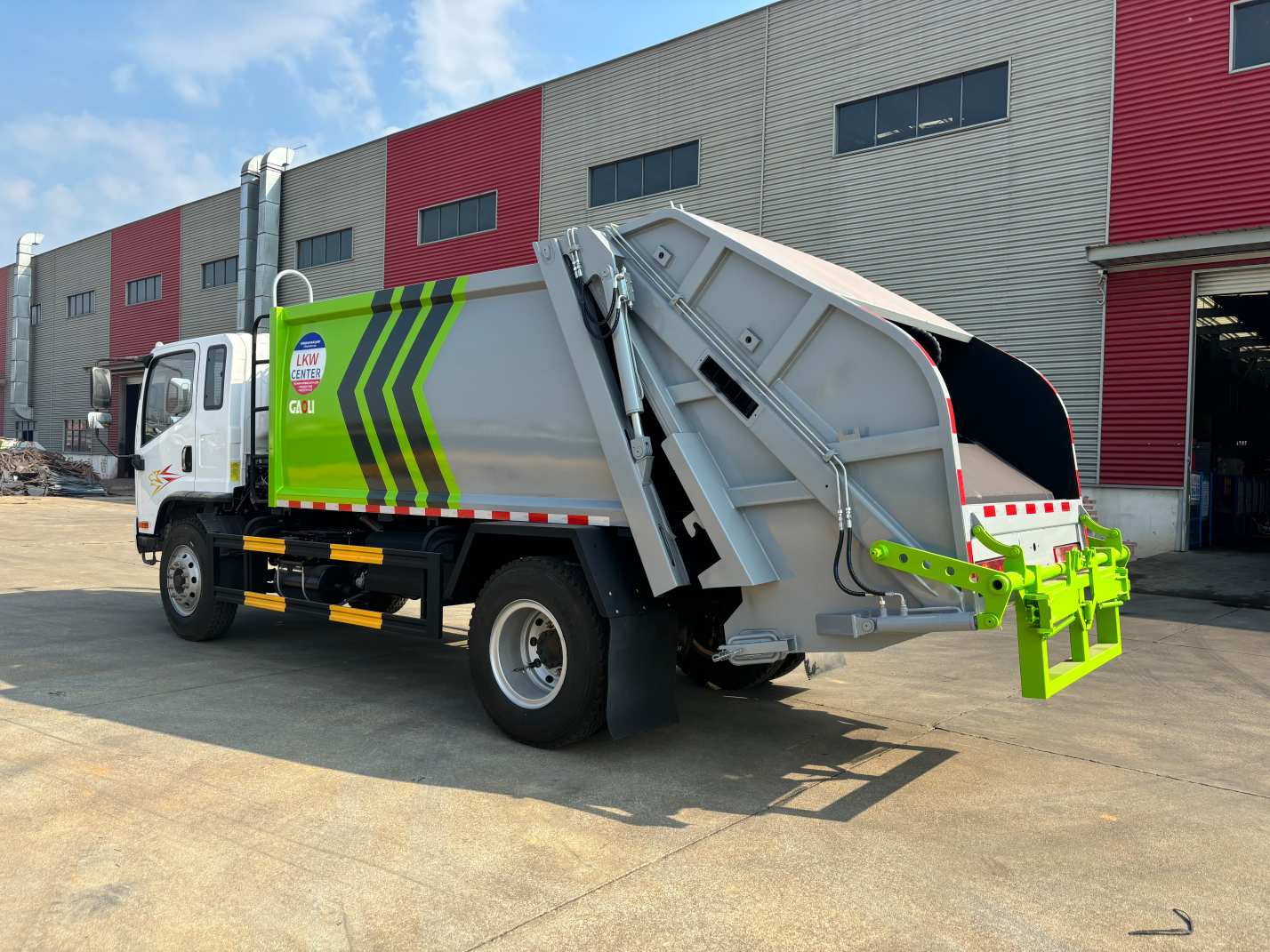

FWN Chassis Compressed Garbage Truck – Product Introduction

The FWN chassis compressed garbage truck is a heavy-duty sanitation vehicle specifically designed for municipal waste transportation. It is equipped with a high-efficiency hydraulic compression system that tightly squeezes garbage to maximize loading capacity and reduce the number of transportation trips.

Core Features

1. High-Efficiency Hydraulic Compression System
The truck adopts electro-mechanical-hydraulic integration technology. Through specialized devices such as the carriage, filler, and push shovel, it can load, crush, compact, and squeeze garbage into the compartment, achieving automatic repeated compression and peristaltic compression. The compression ratio can reach over 3:1

. This means that the same compartment volume can hold significantly more waste than conventional trucks, directly reducing the per-ton transportation cost.

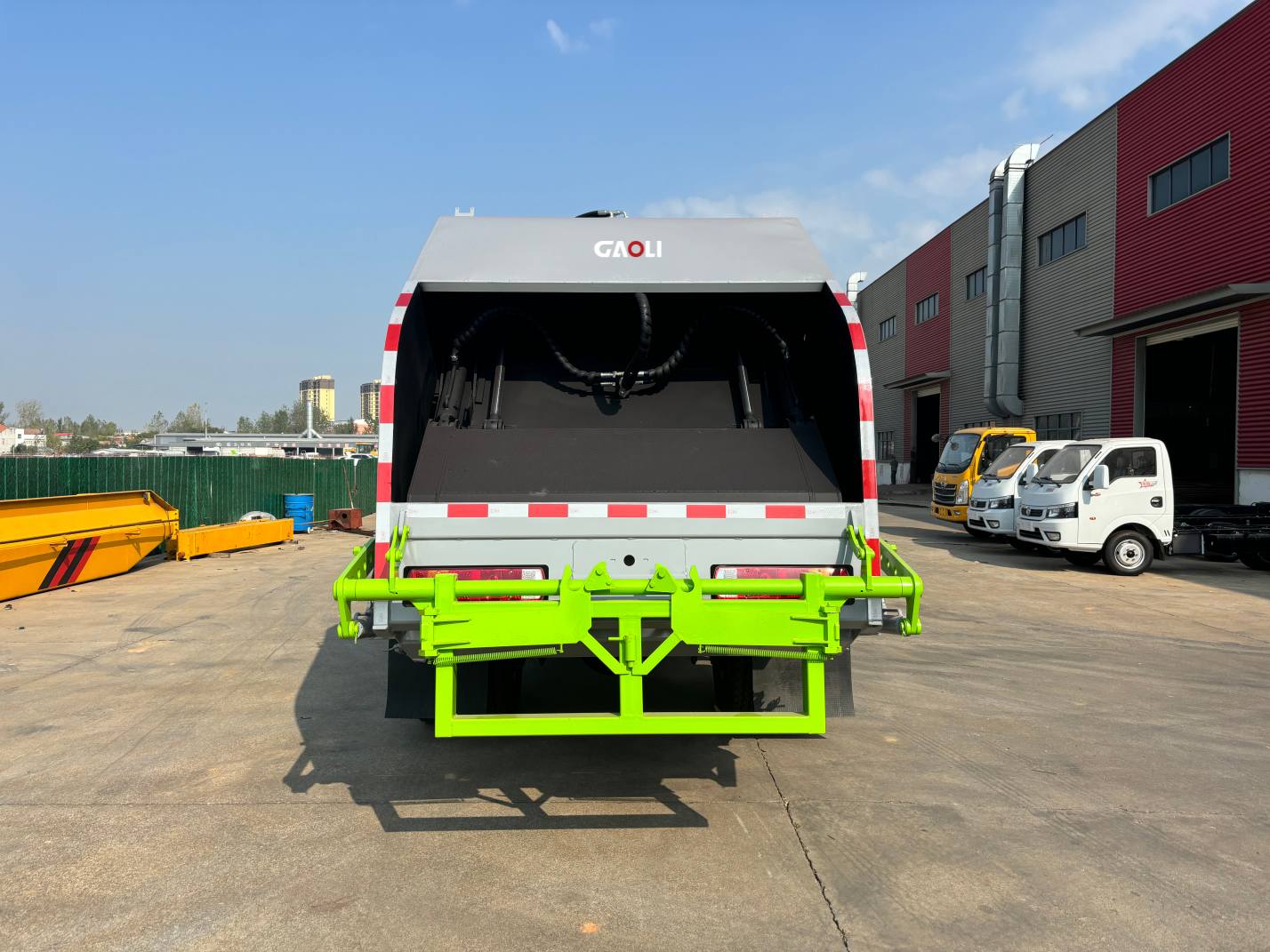

2. Rear Lifting and Feeding Mechanism
The rear of the vehicle is equipped with a bin lifting mechanism that can automatically lift standard 240L waste bins for fast loading. The filling time is only 12–30 seconds per cycle, greatly saving manual labor. The lifting mechanism can be optionally configured for iron or plastic bins to suit different waste container specifications

3. Fully Sealed Compression Compartment
The entire vehicle features a fully sealed structure. During the compression process, all sewage directly enters a dedicated污水 tank. The rear door is fitted with rubber sealing strips, effectively preventing leachate leakage and odor overflow, completely eliminating secondary pollution during transportation.

4. Durable Structural Design
The compartment is manufactured from high-strength wear-resistant steel plates (such as Q355 or Q345 manganese steel), with side plate thickness of 4–5mm and bottom plate thickness of 5–8mm. Key stress-bearing areas are reinforced with premium high-strength steel. The hydraulic cylinder undergoes heat treatment and integrates a buffer system, while high-pressure hoses are reinforced with three layers of steel wire, ensuring long-term stable operation

5. Powerful Engine System
The truck is powered by a reliable diesel engine mated to a multi-speed transmission, delivering strong and stable power output suitable for various operating scenarios including urban main roads, residential communities, and industrial parks. It complies with China VI emission standards, meeting current environmental regulations

Application Scenarios

Widely applicable for municipal sanitation departments, large property management companies, industrial parks, and centralized waste transfer in townships. This vehicle effectively optimizes collection route efficiency and payload capacity, making it a reliable waste management solution for high-duty municipal and industrial applications.
